JET FIVE >3000
|
Axes Configuration |
- |
JET FIVE |
|
|
Process Technology |
- |
Milling |
|
|
Working Area |
X-Axis Stroke Y-Axis Stroke Z-Axis Stroke X/Y/Z Axis Rapid Feed |
mm mm mm m/min |
from 3.000 to 12.000 from 1.500 to 2.500 from 600 to 3.000 40 / 70 (Linear Motors) |
|
Pallet |
Option 1 Option 2 2 |
mm mm |
3.000 x 2.000 6.000 x 2.000 |
|
Rotary Table (B-Axis) |
Max. Rotation Speed |
min-1 |
- |
|
5th Axis (A-Axis) |
Type Tilting Angle |
- Degrees |

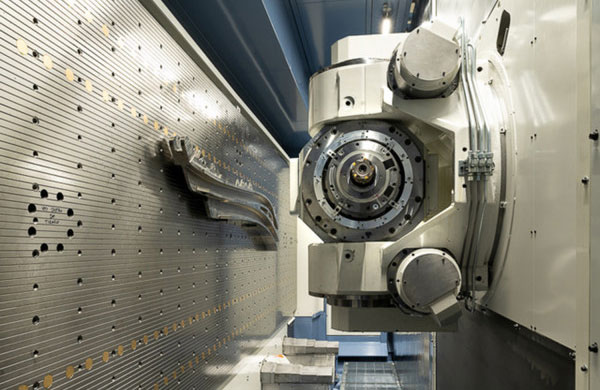

Bi-Rotary Head ±110 (A) ±360 (C) |
|
Spindle Unit |
Tool-Taper Speed Range |
- min-1 |
HSK / ISO from 4.000 up to 30.000 |
|
Tool-Magazine |
Capacity (up to)1 |
No. |
199 (450) |
