CLOCK 1200 EVO
|
Axes Configuration |
- |
4-Axes |
5-Axes |
5-Axes Multitasking |
|
|
Process Technology |
- |
Milling |
Milling |
Milling, Turning, Grinding |
|
|
Working Area |
X-Axis Stroke Y-Axis Stroke Z-Axis Stroke X/Y/Z Axis Rapid Feed |
mm mm mm m/min |
1.200 1.000 1.000 75 |
1.200 1.000 1.000 75 |
1.200 1.000 1.000 75 |
|
Pallet |
Option 1 Option 2² |
mm mm |
630 x 630 630 x 800 |
630 x 630 630 x 800 |
Ø 800 - |
|
Rotary Table (B-Axis) |
Max. Rotation Speed |
min-1 |
100 |
100 |
100 / 800 |
|
5th Axis (A-Axis) |
Type Tilting Angle |
- Degrees |
- - |
Tilting Table 145 (+25/-120) |
Tilting Table 145 (+25/-120) |
|
Spindle Unit |
Tool-Taper Speed Range |
- min-1 |
HSK / ISO / CAPTO from 8.000 up to 30.000 |
||
|
Tool-Magazine |
Capacity (up to)1 |
No. |
80 (500+) |
80 (500+) |
80 (500+) |
|
Available Configurations |
Single-Pallet / Twin-Pallet / Multi-Pallet / FMS |
CLOCK 1000 EVO
|
Axes Configuration |
- |
4-Axes |
5-Axes |
5-Axes Multitasking |
|
|
Process Technology |
- |
Milling |
Milling |
Milling, Turning, Grinding |
|
|
Working Area |
X-Axis Stroke Y-Axis Stroke Z-Axis Stroke X/Y/Z Axis Rapid Feed |
mm mm mm m/min |
1.000 1.000 1.000 75 |
1.000 1.000 1.000 75 |
1.000 1.000 1.000 75 |
|
Pallet |
Option 1 Option 2² |
mm mm |
630 x 630 630 x 800 |
630 x 630 630 x 800 |
Ø 800 - |
|
Rotary Table (B-Axis) |
Max. Rotation Speed |
min-1 |
100 |
100 |
100 / 800 |
|
5th Axis (A-Axis) |
Type Tilting Angle |
- Degrees |
- - |
Tilting Table 145 (+25/-120) |
Tilting Table 145 (+25/-120) |
|
Spindle Unit |
Tool-Taper Speed Range |
- min-1 |
HSK / ISO / CAPTO from 8.000 up to 30.000 |
||
|
Tool-Magazine |
Capacity (up to)1 |
No. |
80 (500+) |
80 (500+) |
80 (500+) |
|
Available Configurations |
Single-Pallet / Twin-Pallet / Multi-Pallet / FMS |

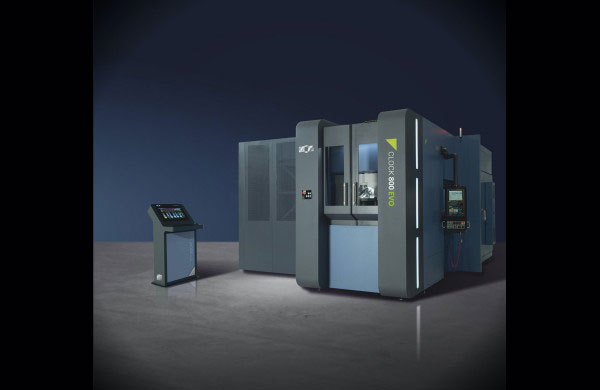

CLOCK 800 EVO
|
Axes Configuration |
- |
4-Axes |
5-Axes |
5-Axes Multitasking |
|
|
Process Technology |
- |
Milling |
Milling |
Milling, Turning, Grinding |
|
|
Working Area |
X-Axis Stroke Y-Axis Stroke Z-Axis Stroke X/Y/Z Axis Rapid Feed |
mm mm mm m/min |
800 800 800 75 |
800 800 800 75 |
800 800 800 75 |
|
Pallet |
Option 1 Option 2² |
mm mm |
500 x 500 500 x 630 |
500 x 500 500 x 630 |
Ø 630 - |
|
Rotary Table (B-Axis) |
Max. Rotation Speed |
min-1 |
100 |
100 |
100 / 1.200 |
|
5th Axis (A-Axis) |
Type Tilting Angle |
- Degrees |
- - |
Tilting Table 140 (+35/-105) |
Tilting Table 140 (+35/-105) |
|
Spindle Unit |
Tool-Taper Speed Range |
- min-1 |
HSK / ISO / CAPTO from 10.000 up to 30.000 |
||
|
Tool-Magazine |
Capacity (up to)1 |
No. |
80 (500+) |
80 (500+) |
80 (500+) |
|
Available Configurations |
Single-Pallet / Twin-Pallet / Multi-Pallet / FMS |
